Ranger
The Essential Ranger Semi Off Road has been designed for the caravanner wanting to venture a bit more off the beaten track and into those quieter less frequented hideaways.
Equipped with Independent Coil & Trailing Arm Suspension, 16” All Terrain Tyres, Grey Tank, Dual Solar & 300Ah Lithium Battery System, all is set for an adventurous journey!
*2025 model shown
*The image shown may not match all possible van layouts within the model range.
*Stirling colour palette pictured.
Ranger Standard Specifications
Standard Chassis
- 6” Heavy Duty A-frame
- A-Frame Extended 450mm
- Jumbo 500 Toolbox Smooth Raptor Coated incl. 2 × Slides
- 4” Heavy Duty Chassis & 2” Raiser up to & including 21’6 size van
- 6” Heavy Duty Chassis above 21’6 size van – no Raiser
- Heavy Duty 2 Arm Bumper
- Break Away System
- 265/75R16 All Terrain Tyres & 16” Alloy Rims to Single Axle
- 245/75R16 All Terrain Tyres & 16” Alloy Rims to Tandem Axle
- 12” Electric Brakes to Single Axle
- 10” Electric Brakes to Tandem Axle
- Titan X Off Road Suspension to Single Axle (Van 186R has upgraded 2750kg GTM)
- Titan Semi Off Road Suspension to Tandem Axle
- Drop Down Stabilizer Stands
- Wind Up Jack
- Aluminium Pullout Step
- A-Frame Tap & Gas Regulator
- Checker Plate Water Tank Stone Guards
- Spare Wheel Included
- Galvanised Wheel Arches
- DO35 Coupling
- 8” Jockey Wheel
- Batteries Mounted on Chassis
Standard Electrical
- 2 × 220W Solar Panels Roof Mounted
- External Solar Input Blue Anderson Plug
- 30A AC Battery Management System & 30A MPPT Solar
- 4” Bluetooth LCD Colour Monitor Touch Screen
- 30A DC–DC Charger
- 1 × 300Ah Lithium Battery Chassis Mounted
- 240V 15AMP Inlet & 240V 10AMP Outlet
- Reversing Camera & Car Monitor Kit
- LED Lighting – Roof, Kitchen, Ensuite
- LED External Lights
- 12V / USB Socket & TV Point at Outside Picnic Table
- Double 240V Point & USB Point to Each Wardrobe and Lounge
- Door Light & Entry Handle
- Power Points (1 × Kitchen, 1 × Ensuite)
- Bulkheads with Strip Lights
- Reading Lights to Bedroom & Lounge with USB & USB-C
- Circuit Breaker & Earth Leakage
- Stovetop with 3 × Gas / 1 × Electric Element & Gas Mini Grill
- Microwave in OHC Above Kitchen
- Roof Digital TV Antenna
- 24” Flatscreen TV on Wall Mounted Bracket
- 12 Pin Trailer Plug
- 2-way Switch from Bedroom to Ensuite Light
- 2 × Bug Annexe Lights & Bug Light over Tunnel Boot
Standard Internal
- One-piece Poly Honeycomb Flooring System
- Doors to Ends of Seats
- Wardrobes Recessed Cutout with Shelf
- Drawers on Metal Runners
- Push Button Locking Handles to Lower Doors and Drawers
- Hidden Latches to OHC
- Door Hinges Hairline
- Fire Extinguisher
- Smoke Detector
- 12V Rangehood
- Mirror in Ensuite
- Washing Machine (not standard in Ranger Family Vans)
- Microwave in OHC Above Kitchen
- Recessed Cooktop with Lid Over Stove
- Pot Drawer Beneath Stove & Grill
- Innerspring Queen Mattress
- Charger Under Bed
- Grab Handle on Entry Wall at Main Door (layout dependent)
- Nuova Telescopic Table Leg to L-Shape & Club Lounge (infill cushion not included)
- 2 Single Towel Rails and 1 Toilet Roll Holder
- Cutlery Tray
- Full Laminate Benchtop
- Frosted Glass Shower Door
Standard Plumbing
- Flick Mixer Taps
- 3-in-1 Kitchen Tap with Water Filter
- Mains Pressure Water Inlet
- 2 × Lockable Water Tank Inlets
- Dual 9kg Gas Bottles with Changeover Regulator
- Gas / Electric Hot Water System
- A-Frame Mains Pressure Tap
- China Vanity to Ensuite
- 2 × 95L Water Tanks
- 95L Grey Water Tank
- Deep Bowl Stainless Steel Sink with Drainer (Layout 218M – no Drainer)
- External Gas Bayonet at Front Boot Door Side
- Porcelain Bowl Toilet
- 2-Door 171L Compressor Fridge
- 12V Water Pump
- Twin Water Level Gauges
Standard External
- Roof Air Conditioning (SANJO)
- Checker Plate Step
- Galvanised Front Tunnel Boot with Large Access Doors
- Galvanised Rear Generator Compartment (layout dependent)
- Double Glazed Push Out Windows with Integrated Blinds
- LED Roof Skylight with Blind & Flyscreen (1 or 2 depending on layout)
- 12V LED Fan Hatch to Shower & Toilet
- Radius Locking Security Main Door
- External Fold Down Picnic Table with Integrated 12V Lighting
- Black External Trim
- Awning
- One-piece Fibreglass XPS Sandwich Panel Roof, Fully Insulated
- Smooth Aluminium Composite Sides
- Insulated Side Walls with Meranti Framing
- Poly Frame Front Wall
- One-piece Poly Honeycomb Flooring System
- Raven Coated Checker Plate Front & Rear
- 800mm Raven Coated Checker Plate Sides
- Raven Coated Checker Plate Wheel Spat
- One Key to Access Hatches and Main Door
- 3-Year Bumper to Hitch Warranty

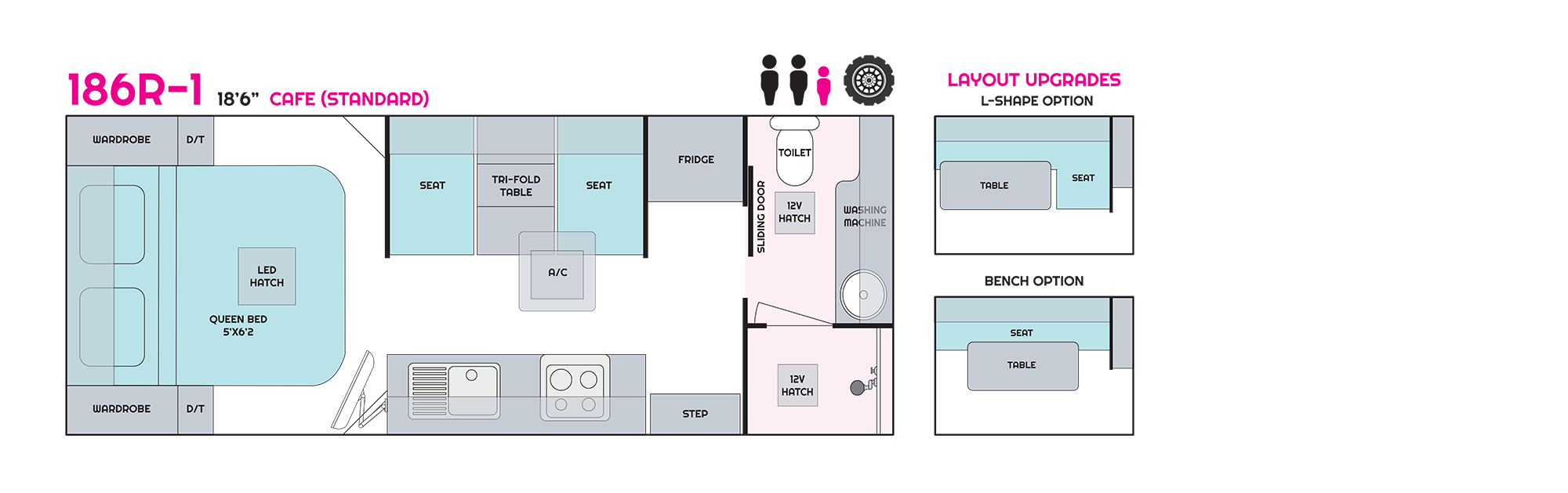

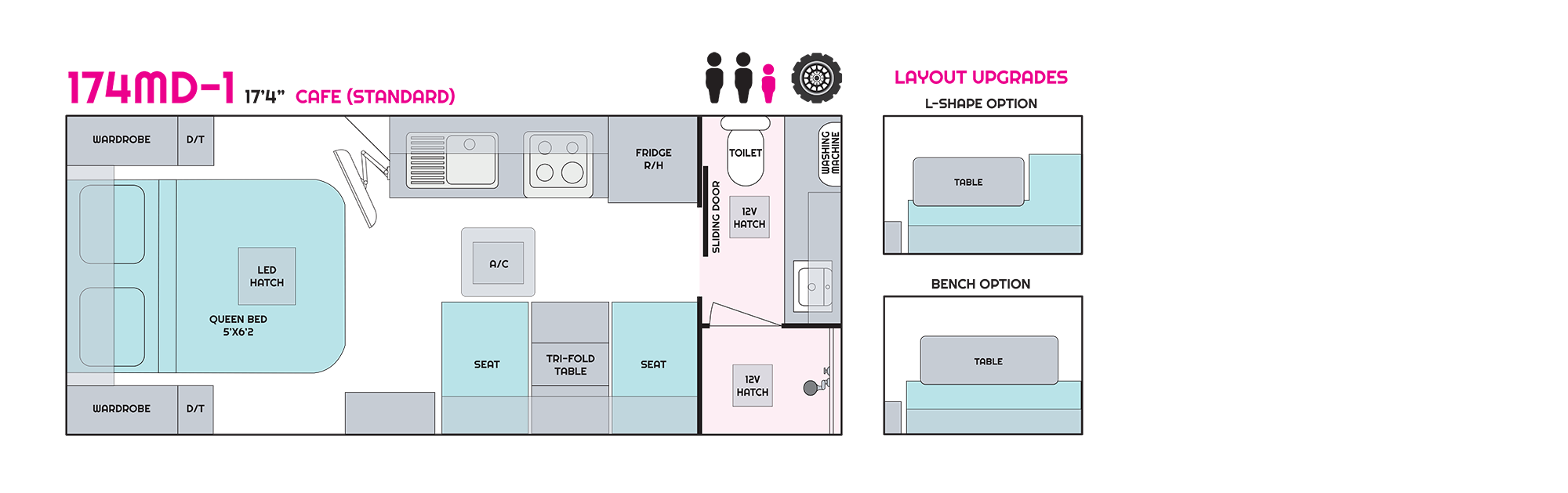

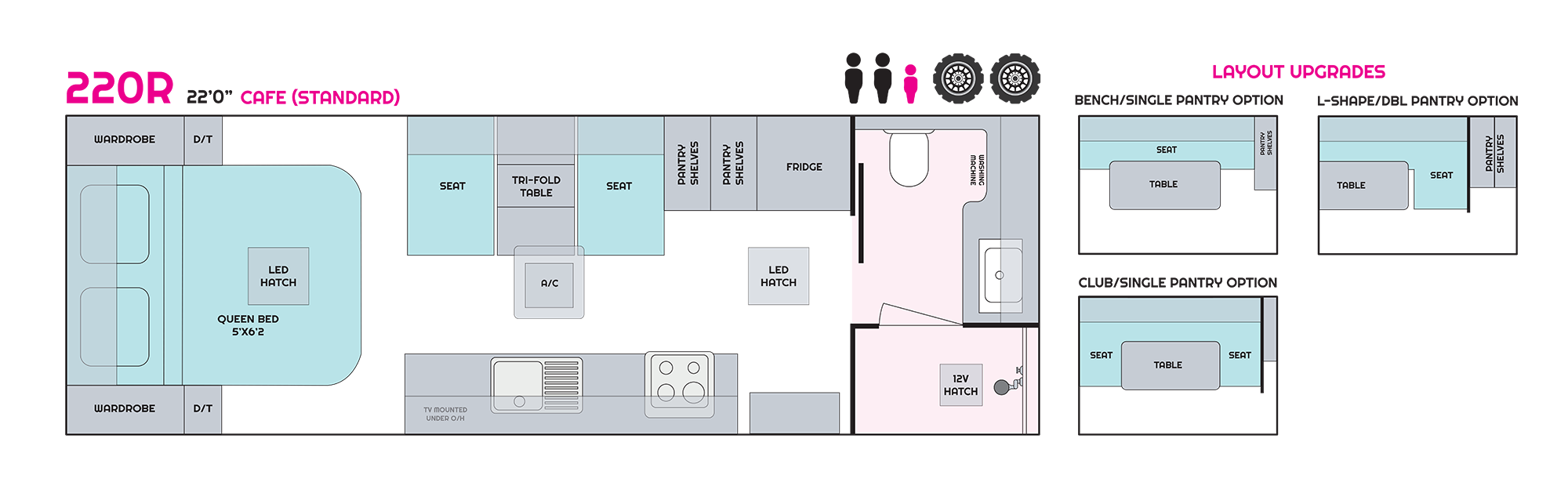

Van layouts

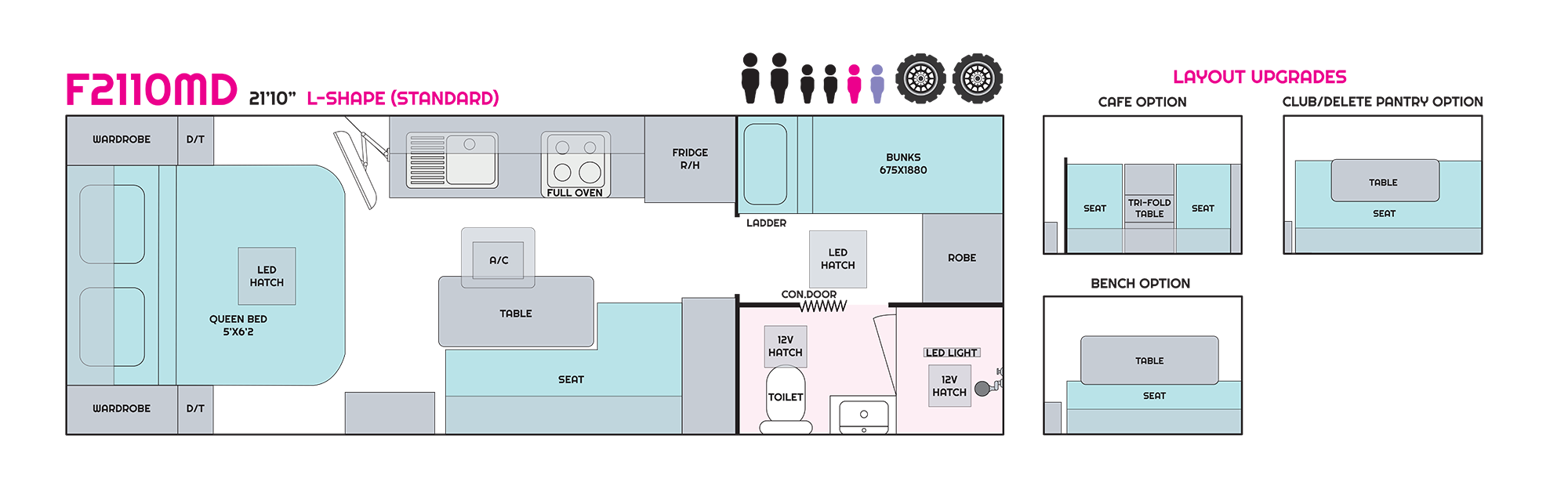

Family layouts
Key
Berths
Adult
Child
3rd bunk option
Drop down table option
(Bench, L-Shape & Club Lounge only)
Axles
Single axle
Tandem axle
